Using filters allows UR Courses to perform some automatic formatting and linking within your course in a variety of contexts.

To enable or disable a filter:

1. Go to the course page that you want to enable or disable the Filter

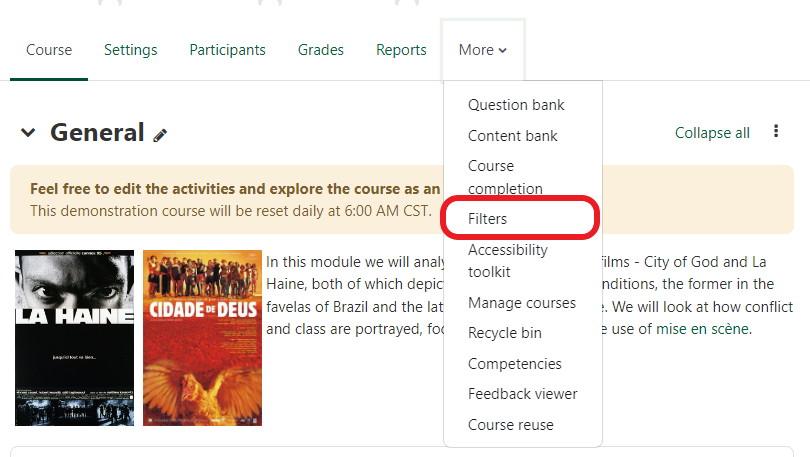

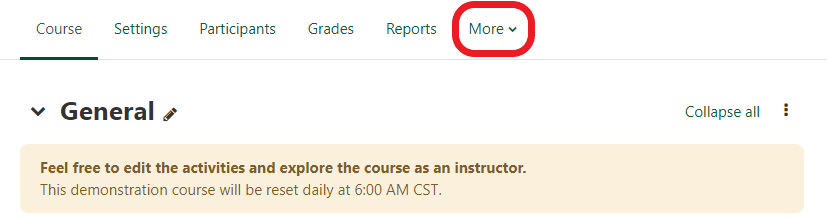

2. Click the More option in the navigation bar.

   Note: It is not recommended to embed media on the main page of your course as it will be loaded for every visit to the course.

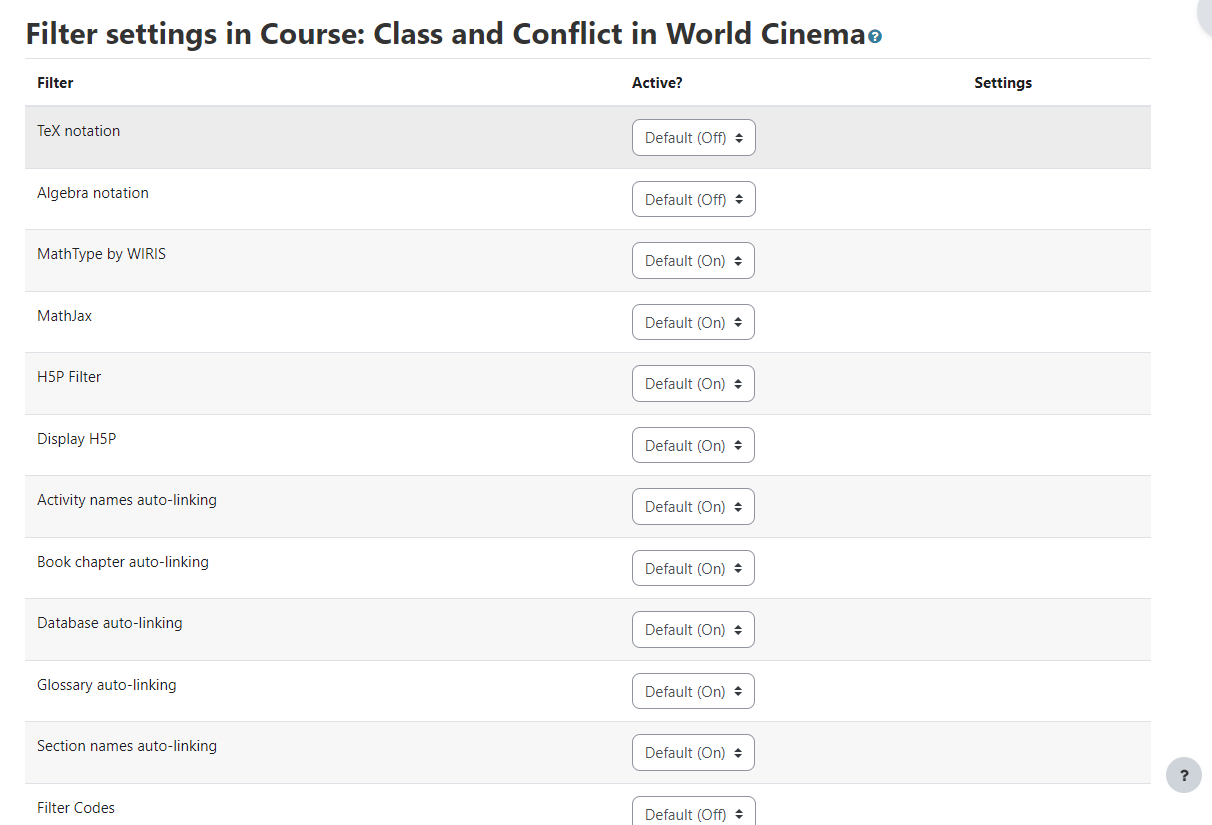

3. Click on Filters in the drop down menu.

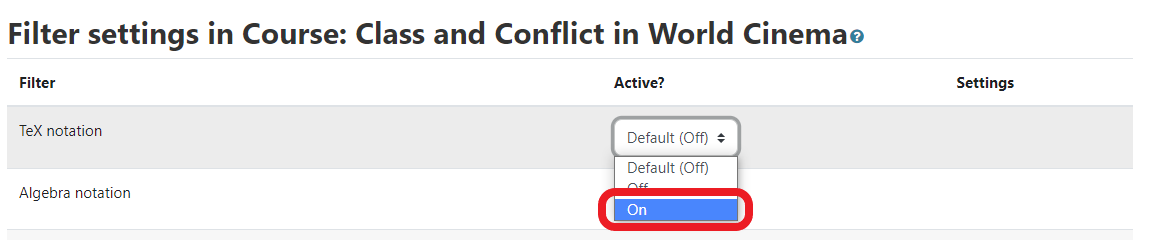

4. In the dropdown menu next to the filter, you wish to enable, choose On.


5. Scroll to the bottom of the page and click Save Changes.

Back to top

The Activity Auto-linking filter can automatically convert the name of any activity in the text of your course into a link.

Example:

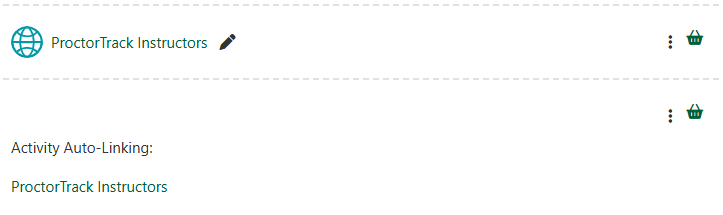

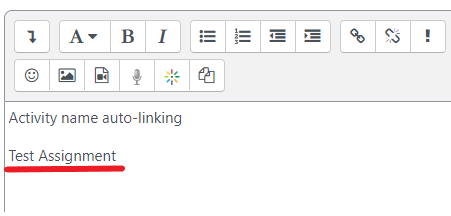

In this example, you will notice that the activity name has now became a link as shown in the images below.

Sample output

Back to top

The Book Chapter Auto-linking filter will automatically convert exact matches for the name of any book chapter appearing within the text of your course into a link.

Example:

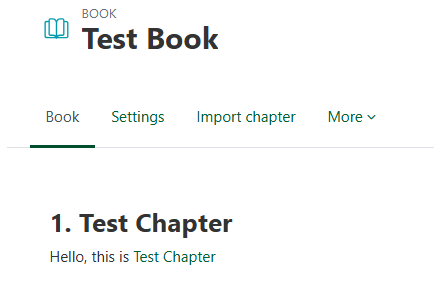

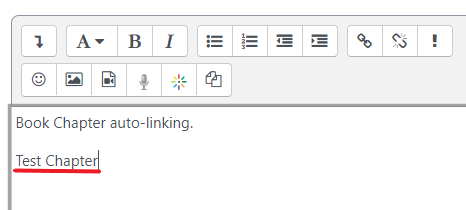

In this example, you will notice that the book chapter name has now became a link as shown in the images below.

Sample output

Back to top

If you are using a Glossary in your course, you can turn on the Glossary Auto-linking filter to have the glossary entry linked to any included term in the course. Hovering your mouse over the term will pop up the glossary entry and provide a clickable link to navigate to that entry in the glossary.

This is useful for a few reasons:

• If there are numerous terms in the course that may be new or difficult for students, they can easily find the explanation
• Additional information can be provided for terms that are not explicitly covered in the course but are useful
• There is no need to manually add links to explanations of specific terms

Enabling Glossary filter video reference provided by Moodle

Example:

In this example we have created a link to glossary key adjective in our glossary acvity within the course page. If you don't know how to create a glossary items please check here how to add an entry.

Sample output

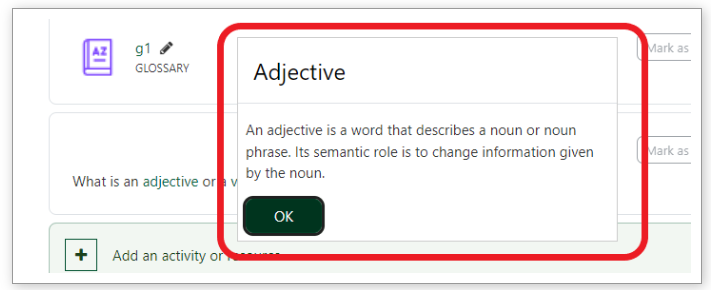

When you click the adjective word in the sample below, it will a popup window about the word adjective as shown in the image below.

Back to top

The Section Auto-linking filter will automatically convert exact matches for the name of any section appearing within the text of your course into a link to that section.

Example:

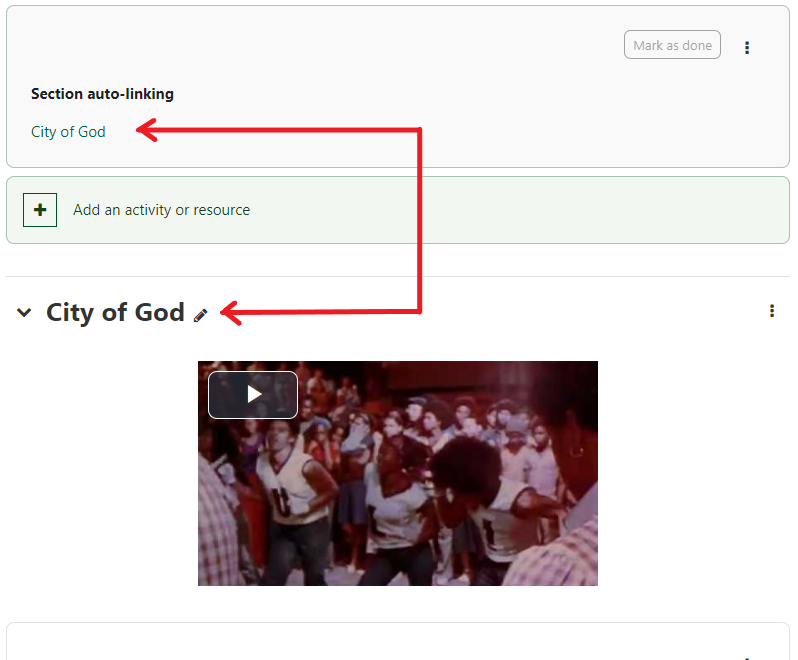

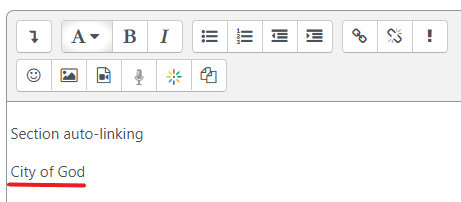

In this example, you will notice that the section name has now became a link as shown in the images below.

Sample output

Back to top

As the name suggests, the Convert URLs into links and images filter converts a URL such as http://moodle.org into a clickable link http://moodle.org. In addition it can replace image URLs with images.

Any valid url that you have written in your course page sections will automatically be converted into URL links without you creating a link for them.

Example:

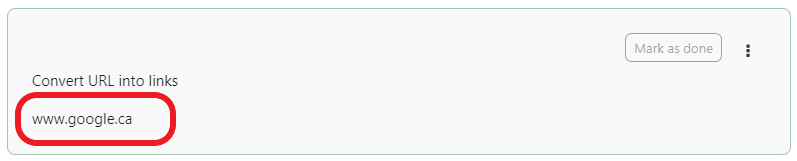

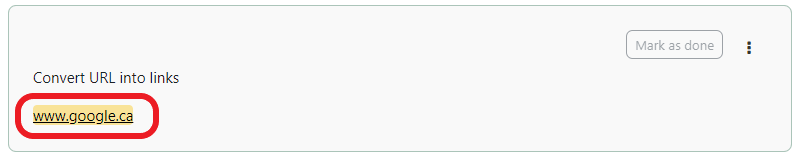

This URL links will be converted to clickable links as shown in the image below.

Back to top

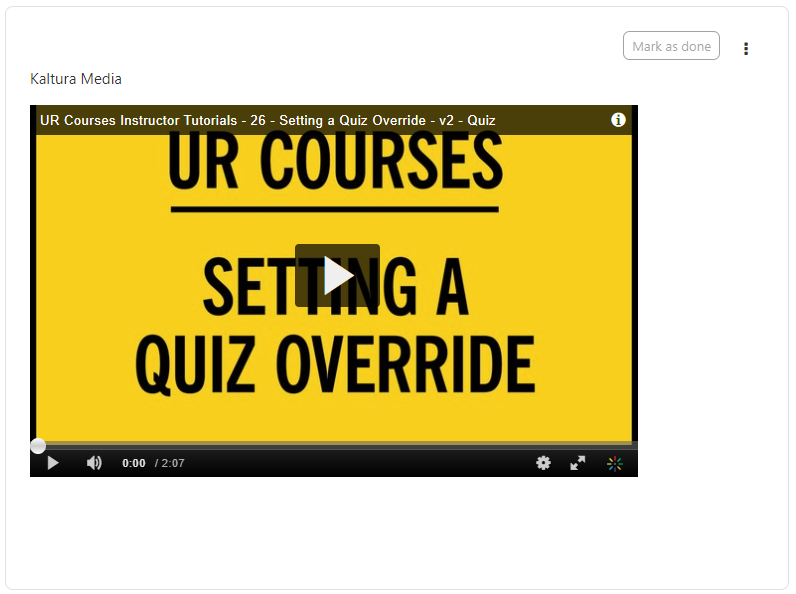

The Kaltura Media filter within UR Courses will turn links to media hosted within My Media, on our Kaltura Premium platform, into embedded video that provide playback options for all devices. This filter is enabled by default, and is recommended when inserting links to Kaltura media from the Kaltura icon within the editor toolbar.

Sample output

Back to top

Poodll has an audio recording feature available within the Atto html editor. The Poodll filter converts links to mp3 recordings into players that then play audio from right within the course without having to download the media.

What is Poodll Filter? video reference provided by Poodll.

Example:

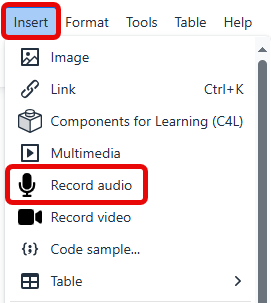

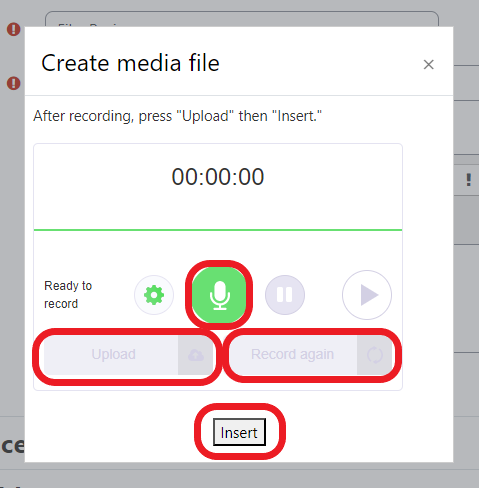

In this example we will be using record audio button in the text editor, this will open audio poodll recorder in a popup window. Once the filter is turned on and properly configured it should display poodle audio player that will let you play the recorded audio in the course page.

Sample output

• Display view if poodll filter is turned off or disabled

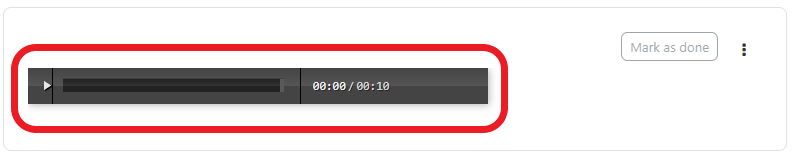

• Display view if poodll filter poodll filter is turned on or enabled


Back to top

The Multimedia Filter allows you to embed multimedia items in your course without the need for additional code.

The multimedia filter may be used

• To automatically embed YouTube videos by just pasting in the link
• To automatically embed mp3 audio files in context by linking to an audio file on the web or uploading the file to UR Courses and providing a link to the file

Example:

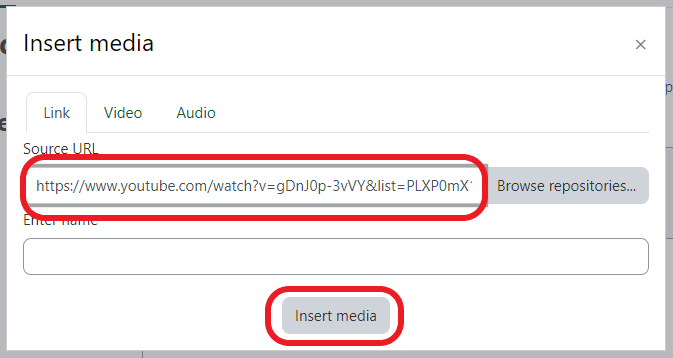

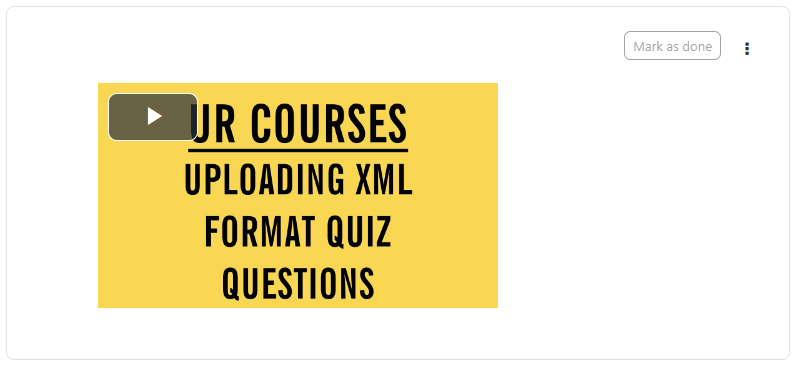

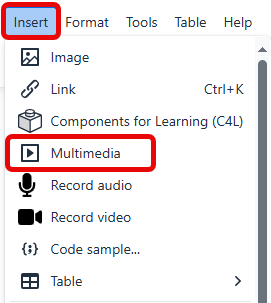

In this example we will be using YouTube URL link, click the media file button in the text editor as shown on the images below.

Sample output

Back to top

H5P is a plugin for existing publishing systems that enables the system to create interactive content like Interactive Videos, Presentations, Games, Quizzes and more!

Here is a documentation referrence provided by h5p.org

Back to top

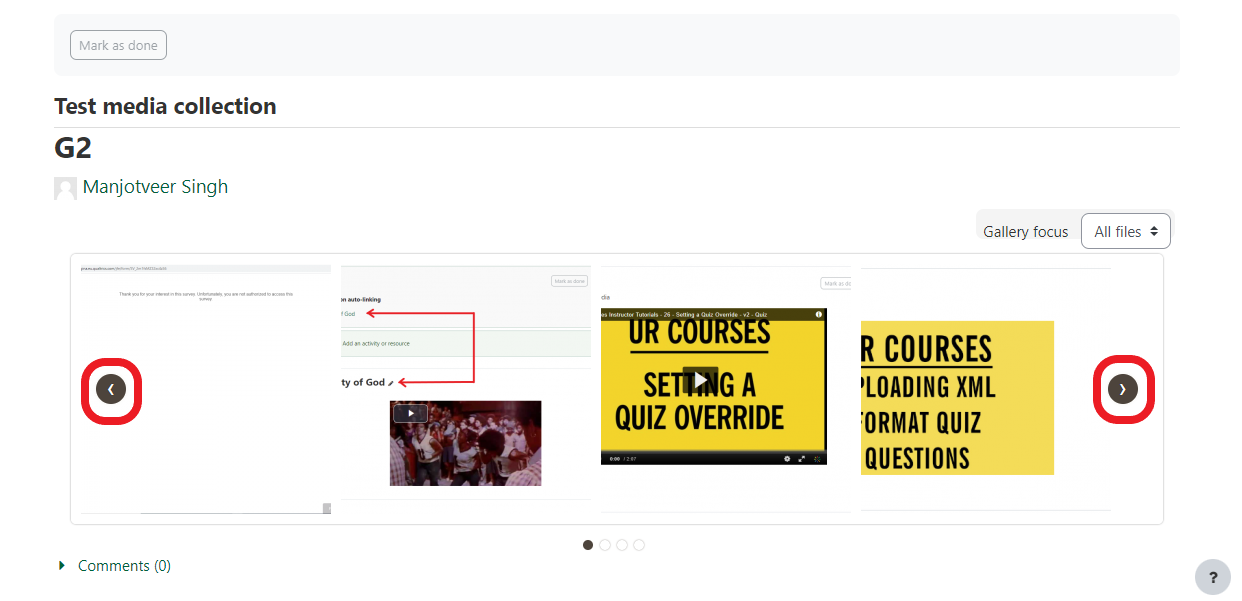

Allows you to have carousels of a media gallery or galleries displayed in your course in labels and such.

Sample output:

Back to top

Wiris Quizzes is an assessment tool with computer-based grading that enhances the usual standard question types in UR Courses with mathematical and scientific functionalities.

Example:

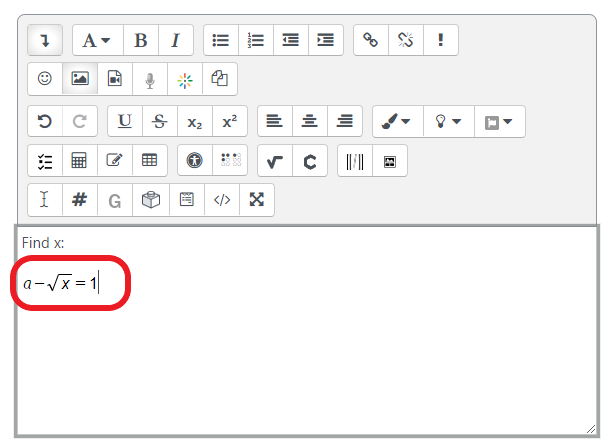

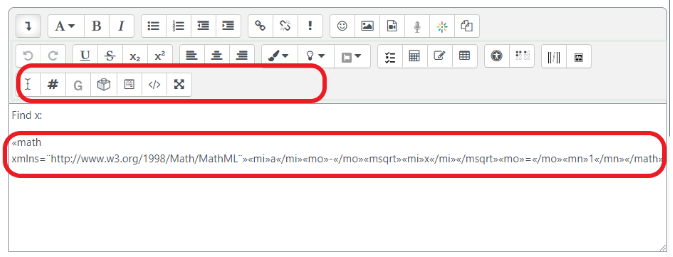

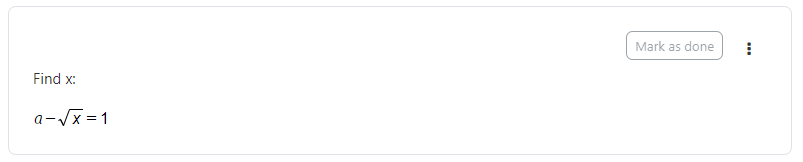

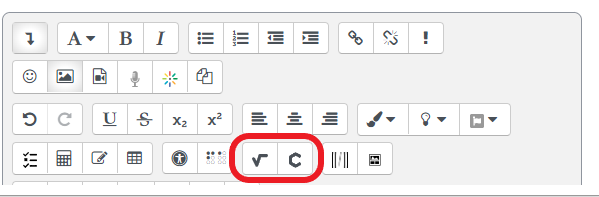

Once the filter is turned on and properly configured you should be able to see the Mathtype and Chemtype button and the equation in the text editor should now be displaying correctly as shown in the images below.

Sample output

Back to top

The TeX Filter is a core Moodle filter intended to allow one to convert tex expressions into GIF, PNG or SVG images. The filter relies on some additional binaries to accomplish this for expressions contained between appropriate tokens. Where these binaries are not available, Moodle provides for a fallback through the use of Mimetex. Versions of MimeTex for Linux (glib2.3 32bit), Windows, Mac OS X and FreeBSD are included in the Moodle distribution. There are other technologies available for displaying Tex (see the section on Mathematics tools for a discussion).

Example:

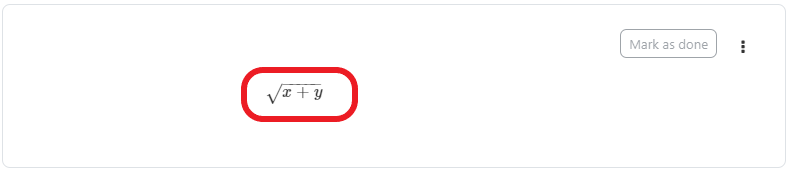

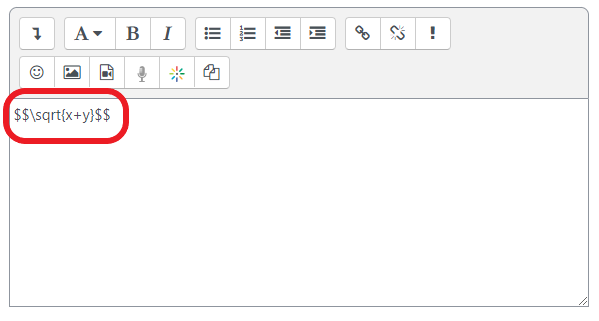

In this example, once the filter is turned on and properly configured you can make use of it by including a TeX expression delimited by double-dollar signs in the text editor.

Sample output

Back to top

MathJax is an open-source JavaScript display engine for LaTeX, MathML, and AsciiMath notation.

It requires no setup on the part of the user (no plugins to download or software to install), so the page author can write web documents that include mathematics and be confident that users will be able to view it.

Example:

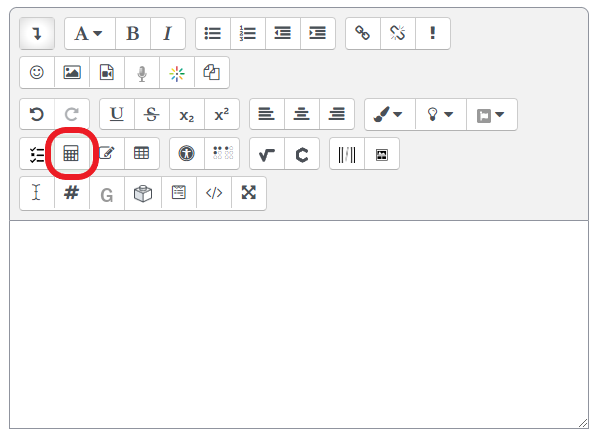

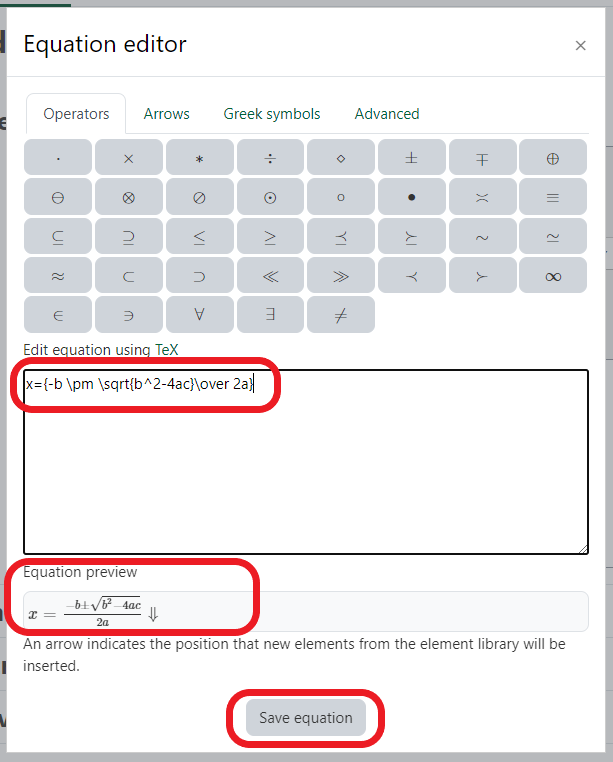

In UR Courses if the MathJax filter is enabled, the equation editor button will appear on the text editor.

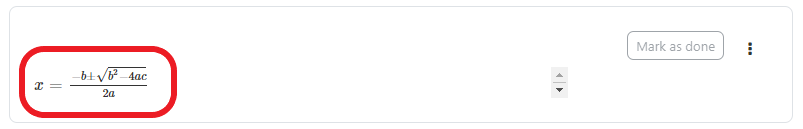

Sample ouput

Back to top

When enabled, the FilterCodes filter allows you to easily customize and personalize course content using numerous plain text tags that can be used throughout the course.

List of FilterCode tags

Profile Information

{firstname} : Display the user's first name.
{surname} or {lastname} : Display the user's surname (family/last name).
{fullname} : Display the user's first name and surname.
{alternatename} : Display the user's alternate name. If blank, will display user's first name instead.
{city} : Display the user's city.
{country} : Display the user's country.
{timezone} : Display the user's preferred timezone.
{preferredlanguage} : Display the user's preferred language in that language. Because of this, it will be encapulated in an HTML span tag with an appropriately set lang attribute.
{email} : Display the user's email address.
{userid} or %7Buserid%7D : Display the user's Moodle ID.
{idnumber} : Display the user's idnumber from their profile.
{username} : Display the user's username.
{userdescription} : Display the user's description.
{webpage} : Display the user's webpage as seen in their profile.
{institution} : Display the name of the institution from the user's profile.
{department} : Display the name of the department from the user's profile.
{userpictureurl X} : Display the user's profile picture URL. X indicates the size and can be sm (small), md (medium) or lg (large). If the user does not have a profile picture or is logged out, the default faceless profile photo URL will be shown instead.
{userpictureimg X} : Generates an HTML tag containing the user's profile picture. X indicates the size and can be sm (small), md (medium) or lg (large). If the user does not have profile picture or is logged out, the default faceless profile photo will be used instead.
{profile_field_shortname} : Display's custom profile field. Replace "shortname" with the shortname of a custom profile field all in lowercase. NOTE: Will not display if custom profile field's settings are set to Not Visible.
{profilefullname}: Similar to {fullname} except that it displays a profile owner's name when placed on the Profile page.
{firstaccessdate dateTimeFormat} : Date that the user first accessd the site. For information on the optional dateTimeFormat format, see Supported dateTimeFormats Formats in the FAQ section of the documentation.
{lastlogin dateTimeFormat} : Date/Time that you last logged into the site.


UI Elements

{courseprogress} : (ALPHA) Displays course progress status in words. Only works within a course.
{courseprogresspercent}: Displays course progress percentage as a number without a percentage symbol. Only works within a course.
{courseprogressbar} : (ALPHA) Displays course progress status as a status bar. Only works within a course.
{button url} : Display link as a button.
{hr} : Display a horizontal rule line.
{label backgroundtype}{/label} : Display text over a colour background.
{markborder}{/markborder} : Surrounds text with a red dashed border.
{marktext}{/marktext} : Highlight text using HTML5's mark tag.
{showmore}{/showmore} : (ALPHA) Toggle showing content between opening and closing more tags.

For use in courses

{coursename} : Display the full name of the current course or the site name if not in a course.
{courseshortname} : Display the short name of the current course or the site short name if not in a course.
{coursestartdate dateTimeFormat} : Course start date. Will display "Open event" if there is no start date. For information on the optional dateTimeFormat format, see Supported dateTimeFormats Formats in the FAQ section of the documentation.
{courseenddate dateTimeFormat} : Course end date. Will display "Open event" if there is no end date. For information on the optional dateTimeFormat format, see Supported dateTimeFormats Formats in the FAQ section of the documentation.
{coursecompletiondate dateTimeFormat} : Course completion date. If not completed, will display "Not completed". Will also detect if completion is not enabled. For information on the optional dateTimeFormat format, see Supported dateTimeFormats Formats in the FAQ section of the documentation.
{courseprogress}: (ALPHA) Displays course progress status in words.
{courseprogressbar}: (ALPHA) Displays course progress status as a status bar.
{course_fields}: Displays the custom course fields. NOTE: Respects a custom course field's Visible To setting.
{course_field_shortname} : Display's custom course field. Replace "shortname" with the shortname of a custom course field all in lowercase. NOTE: Respects a custom course field's Visible To setting.
{coursesummary} : Display's the course summary. If placed in a site page, displays the site summary.
{courseimage} : Display's the course image.
{courseparticipantcount} : Displays the number of students enrolled in the current course.
{courseid} or %7Bcourseid%7D : Display a course's ID.
{coursecontextid}: Display a course's context ID.
%7Bcoursecontextid%7D : Display a course's context ID - for use in URLs. Only for use in course activity modules.
{courseidnumber} : Display a course's ID number.
{sectionid} : Display the section ID (not to be confused with the section number).
{sectionname : Display the section name in which the activity is located.
{coursecontacts} : (ALPHA) List of course teachers with optional link to their profile, email address or Moodle messaging.
{coursegradepercent} : Display the current accumulated course gra of the student
{mygroups} : Display a list of groups to which you are a member.

Content

{note}content{/note} : Enables you to include a note which will not be displayed.
{help}content{/help} : Enables you to create popup help icons just like Moodle does.
{info}content{/info} : Enables you to create popup help icons just like the popup Help icons but with an "i" information icon.
{alert style}content{/alert}: (ALPHA) Creates an alert box containing the specified content. You can change the style by specifying an optional parameter. Example: {alert primary} or {alert success} . See List of styles.
{highlight}{/highlight} : Highlight text. NOTE: Must only be used within a paragraph.
{scrape url="..." tag="..." class="..." id="..." code="..."} : Scrapes the content from another web page. Must be enabled in FilterCodes settings.
{getstring:component_name}stringidentifier{/getstring} or {getstring}stringidentifier{/getstring}: Display a Moodle language string in the current language. If no component name (plugin) is specified, will default to "moodle".
{fa/fas/far/fal fa-...} : Insert FontAwesome icon. Note: FontAwesome Font/CSS must be loaded as part of your theme.
{glyphicon glyphicon-...} : Insert Glyphicons icon. Note: Glyphicons Font/CSS must be loaded as part of your theme.

Back to top

Generico is a simple templating filter, that allows you to set up text and code snippet templates for use in Moodle text areas. It allows an unlimited number of templates to be registered. When Moodle encounters a Generico filter string it will use the data in the filter string to fill out the template, and insert it into the page.

It is useful for ad-hoc template purposes where writing a new plugin would be overkill, or just for re-using common pieces of text. It can be used to centralise and manage the embedding of iframe content from video hosting services, and educational app providers.

In the latest version there are approx. 20 presets from which you can make templates. They include templates for an info box, tabset, accordion, lightbox and image gallery. And there is a companion Atto editor plugin for Generico. The combination of these two features make it possible to use Generico like the Wordpress shortcode plugins.

Sample Generico Video reference provided by poodll.

Intro to Generico: This video discussed how generico filter is use in a course page

Generico basic setup: This video discussed the basic setup of generico in a course page

Back to top

The filter Display emoticons as images converts emoticon (smiley) characters into images.

Emoticons may be added using the button attoemoticon.png Insert emoticon in the Text editor or by typing the emoticon characters e.g. :-).

Samples of emoticons you can used in UR Courses:

Emoticons	Meaning	Characters to type
	smiley	:-)
	biggrin	:-D
	wink	;-D
	mixed	:-/
	thoughtful	V-,
	tongueout	:-P
	cool	B-)
	approve	^-)
	wideeyes	8-)
	clown	;o)
	sad	:-(
	shy	8-.
	surprise	8-o
	blackeye	P-|
	angry	(grr)
	dead	xx-P
	sleepy	|-.
	evil	}-]

Back to top

Database auto-linking is a site Filter that will create links to a database entry where the name/title (word or phrase) of the database entry is used within the same course in which the database is located. This includes forum postings, pages, labels etc.

Back to top

UR Courses has an "algebra filter" which can display mathematical expressions as if they were typeset.

Back to top
